Aerosonde UAV

Example simulation of the Aerosonde UAV (work-in-progress)

PreviousFixed-wing UAV

Last updated 11 months ago

Was this helpful?

The Aerosonde is a small unmanned aerial vehicle (UAV) developed by InSitu, Inc. (later manufactured by Aerodonde, Ltd.) designed to collect weather data, including temperature, atmospheric pressure, humidity, and wind measurements over oceans and remote areas. See the for more information.

The Aerosonde UAV has a wing aspect ratio AR=15.25AR=15.25AR=15.25, wing area Sref=0.55S_{ref}=0.55Sref​=0.55m2^22, wing chord cref=0.1899c_{ref}=0.1899cref​=0.1899m, and wing span bref=2.8956b_{ref}=2.8956bref​=2.8956m [1]. The V-tail has a taper ratio of 1. A body-fixed coordinate system is placed at the nose. The reference speed is ∣Vref∣=25|\mathbf{V}_{ref}|=25∣Vref​∣=25m/s and the reference density, pressure and viscosity are evaluated at an altitude of h=0h=0h=0m (ISA). OpenVSP was used to create the mesh for the Aerosonde UAV. The figures below show the Aerosonde UAV geometry (left) and mesh refinement region and wake (right).

The wake's (shaded in yellow) purpose is to intersect the fuselage. This allows the potential jump across the wake to be resolved properly (i.e. without any numerical errors). The wake is removed by APM during the solution stage. APM only uses the pre-defined wake to determine the intersection location. The resulting mesh consisted of 31569 elements and is shown in the figure below.

The figures below show the pressure coefficient and the doublet potential.

References

[1] Sample model from the AeroSim Library, Copyright 2002 Unmanned Dynamics, LLC

In the above figure, it can be seen that the wake elements were correctly determined by the APM preprocessor (see ). These elements will be removed by APM during the solution stage.

Since the wake is expected to intersect the V-tail a solution where the wake extends to infinity (steady solution) is not applicable. Instead, a time marching solution is performed. Due to APM's hybrid formulation of the wake, a time marching solution allows the wake to intersect downstream surfaces (e.g. the V-tail). For more information see the of the documentation.

element types
interactions with the body section
Museum of Flight Aerosonde page
Aerosonde UAV mesh created with OpenVSP
Aerosonde UAV pressure coefficient

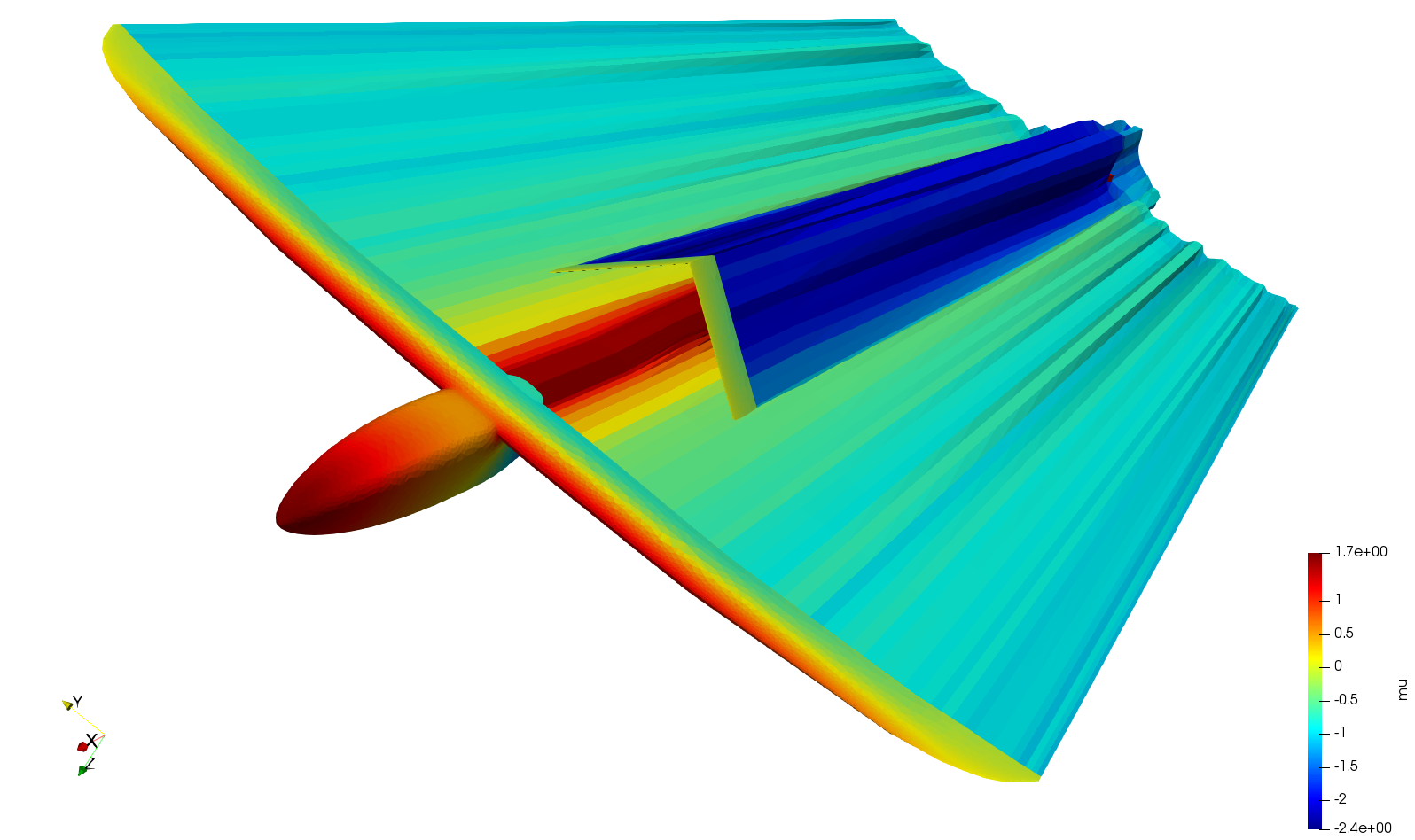

Aerosonde UAV doublet potential
